The Mini ÉSÉA (RA-ME) self-regulating acoustic air inlet, installed on the inside, is made of polystyrene. The anti-mosquito grille function
is ensured directly by the air inlet. Installation in the main rooms (living rooms and bedrooms) for the supply of fresh air from single-flow mechanical ventilation systems.
Available in 15, 22 or 30 m³/h flow rates. The 15 m³/h air inlet allows 22 or 30 m³/h airflows and the 22 m³/h air inlet allows a 30 m³/h airflow.
Operation on vertical walls and all inclined planes (e.g. roof window, underside of roller shutter box, etc.)
The front cap, placed on the outside, is made of UV and weather resistant polystyrene in the same colors as the air inlets.
Assembled exclusively on surfaces sheltered from the weather. In the case of unsheltered surfaces, contact us.

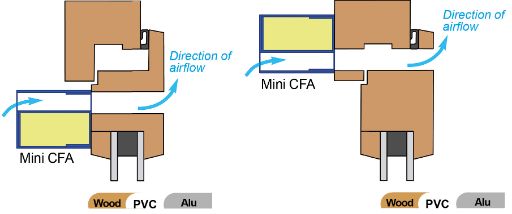

On the inside, the base of the air inlet (Mini ÉSÉA) or the acoustic extension (Mini ÉSÉA RA-ME) is fixed by 2 screws on the 250 x 12 mm or 172 x 12 mm notch. Assembly of the cover by simple interlocking.
On the outside, the cap centered on the notch is fixed by
2 screws on the 250 x 12 mm or 172 x 12 mm notch.
The components must remain easily accessible for maintenance.
Mounting possible with through-wall sleeves.
