Used as part of an ALIZÉ 2018 humidity-controlled ventilation system for collective or individual housing under Technical Approval, the AIRA HY air inlets are associated with the system's humidity-controlled or timed extract vents. They are characterized under a pressure difference of 20 Pa by a variable flow rate of 5 to 45 m³/h depending on the humidity level of the room. The AIRA HY humidity-controlled air inlet, placed on the inside, is made of polystyrene. Installation in the main rooms (living rooms and bedrooms) for the supply of fresh air from single-flow humidity-controlled mechanical ventilation systems.
Operation on vertical walls.
On all inclined planes (eg roof window), only the ISOLA HY air inlet can be installed.
The front cap, placed on the outside, is made of UV and weather resistant polystyrene in the same colors as the air inlets.
Assembly exclusively on surfaces sheltered from the weather. In the case of unsheltered surfaces, contact us.

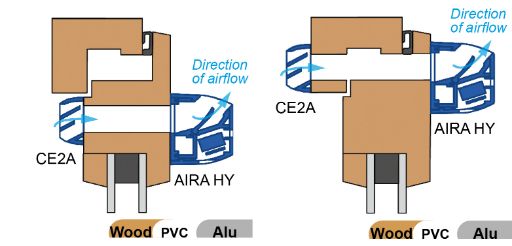

On the inside, the air inlet centered on the 354 x 12 mm notch is fixed by 2 screws. Assembly of the cover with a simple interlocking system.
On the outside, the cap centered on the notch is fixed by 3 screws.
The components must remain easily accessible for maintenance.
For mounting on a through-wall penetration silencer, refer to the SRT product.
Installation also possible with through-wall sleeves.
